Матична плоча Rockchip RV1106

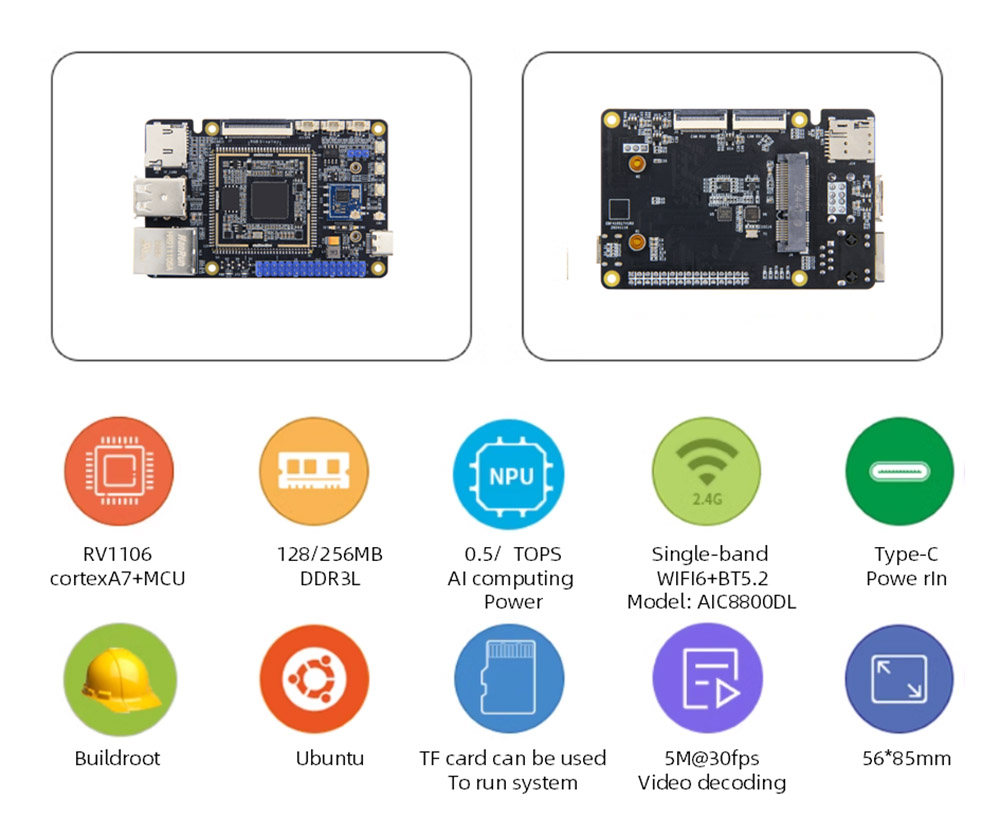

The TP-RV1106 board is mainly aimed at makers and embedded entry-level developers, and can be used for development in a variety of fields such as smart home, security monitoring, industrial automation, consumer electronics, Internet of Things, education and entertainment.

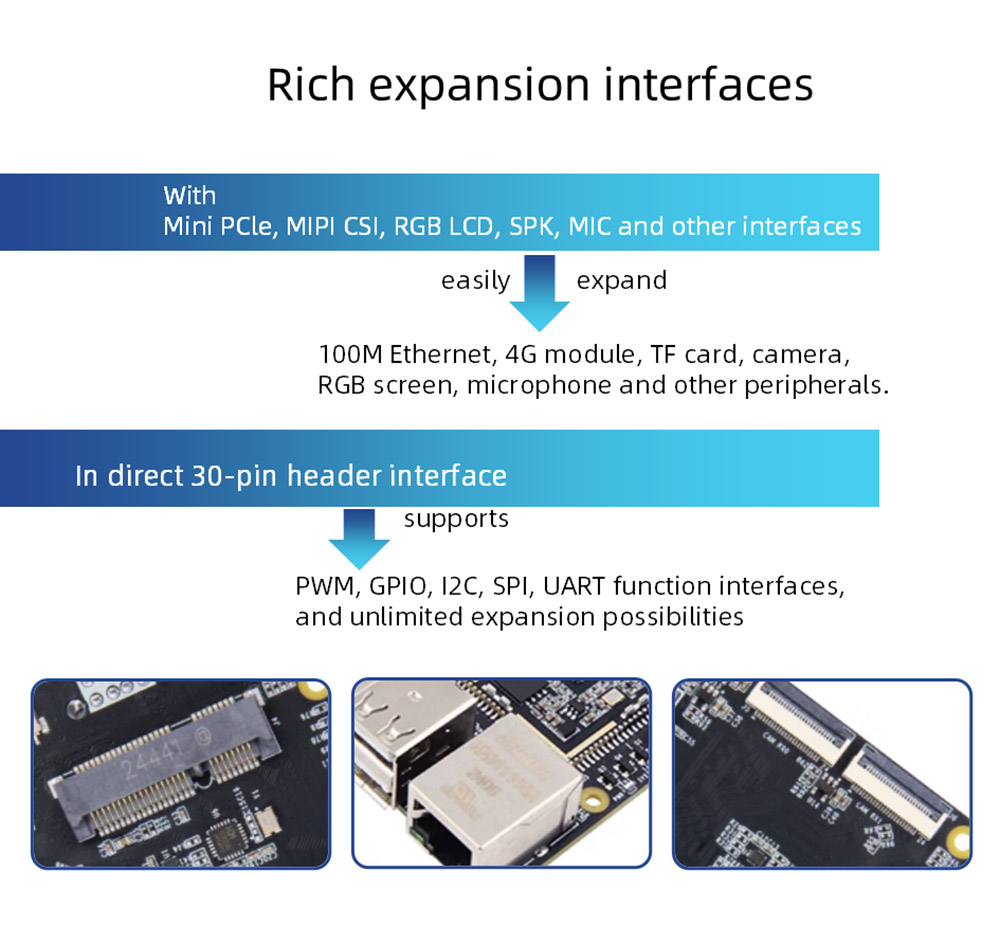

Use Rockchip RV1106 as the main chip, with single-band WiFi6+BT5.2 wireless module USB2.0 HOST, 100M Ethernet, TF card holder, MIPI camera, MIC, SPK and other peripherals, 30Pin configurable pins, support GPIO, SPI, I2C, UART, PWM functions.

Built-in independent NPU computing power can reach 0.5T/1TOPS@int8, with the camera can realize YOLO video real-time recognition, picture recognition and other functions.

Built-in low-latency video encoding module, can support up to 5M@30fps H264/H265 video encoding, 4M@60fps JPEG/MJPEG encoding, and supports multiple bit rate control methods.

The board provides two optional memory configurations, with a size of only 56*85mm, small and exquisite, low power consumption and high performance, and can easily run the Linux system.

Provides buildroot system image, completely open source data, tutorial documents, complete SDK driver development package, PDF schematics and other resources to facilitate user use and secondary development.

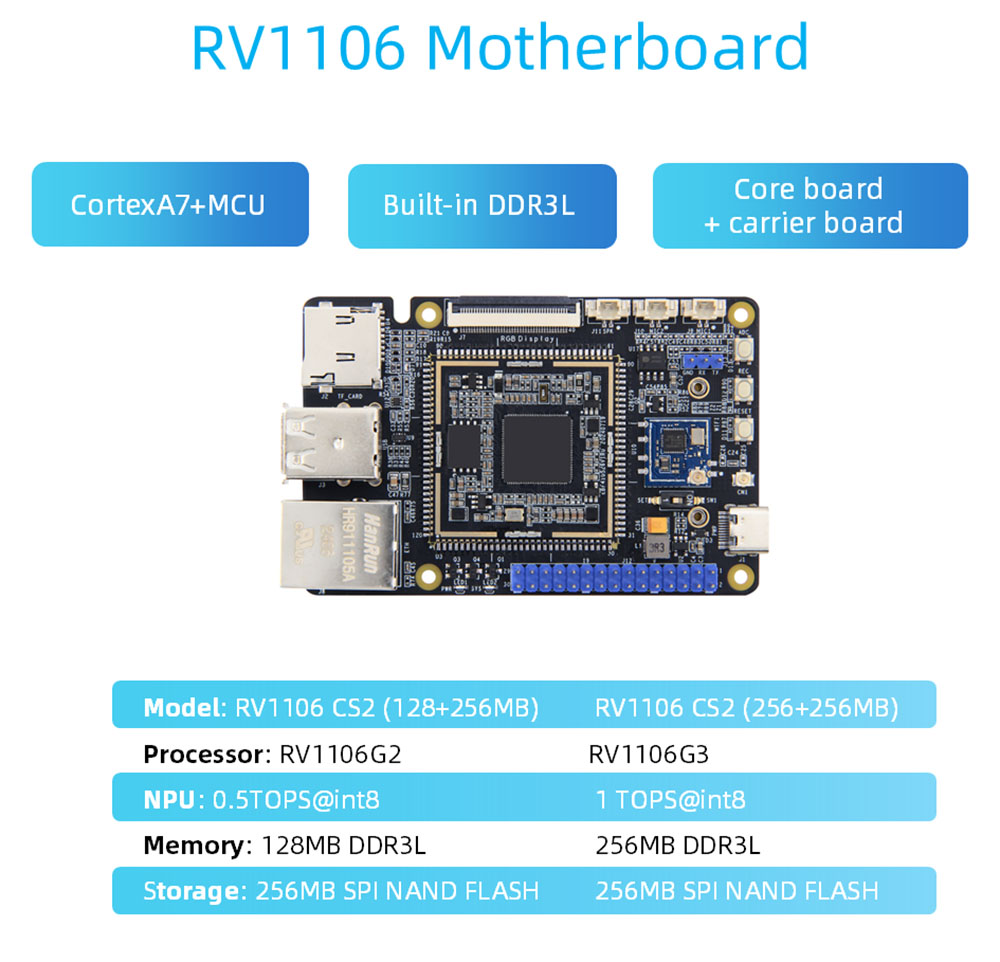

RV1106 Motherboard Hardware Specifications

 CPU: Main chip: RV1106, CortexA7+MCU

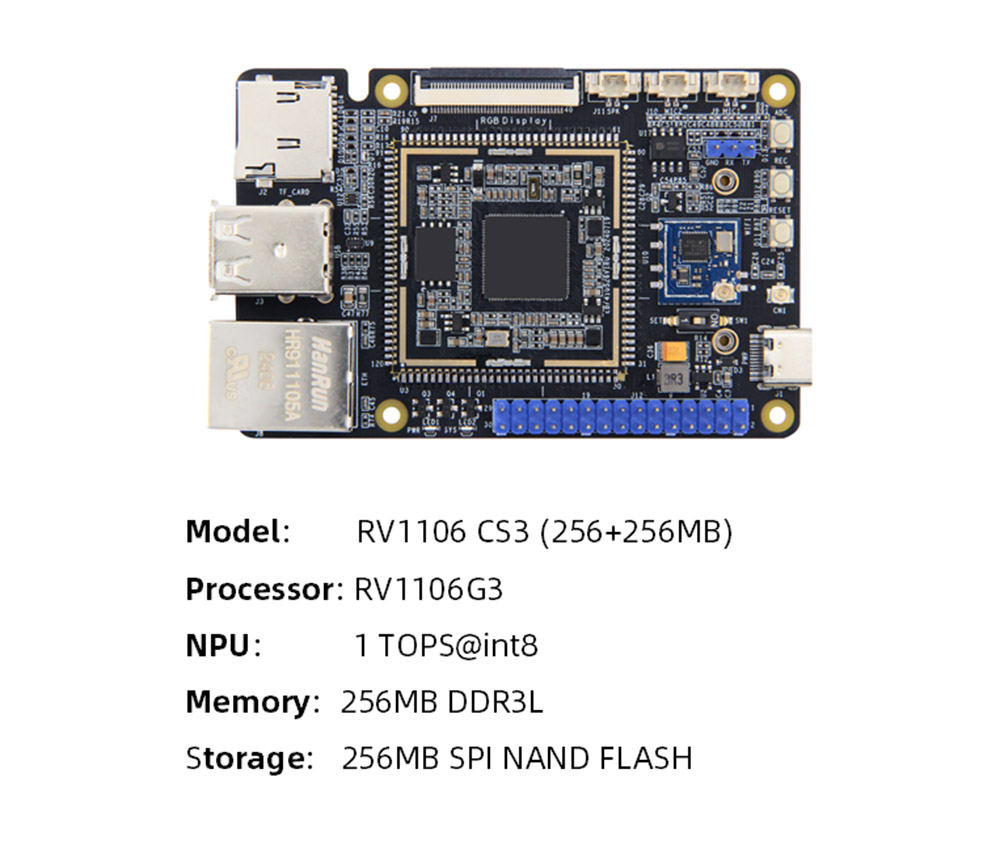

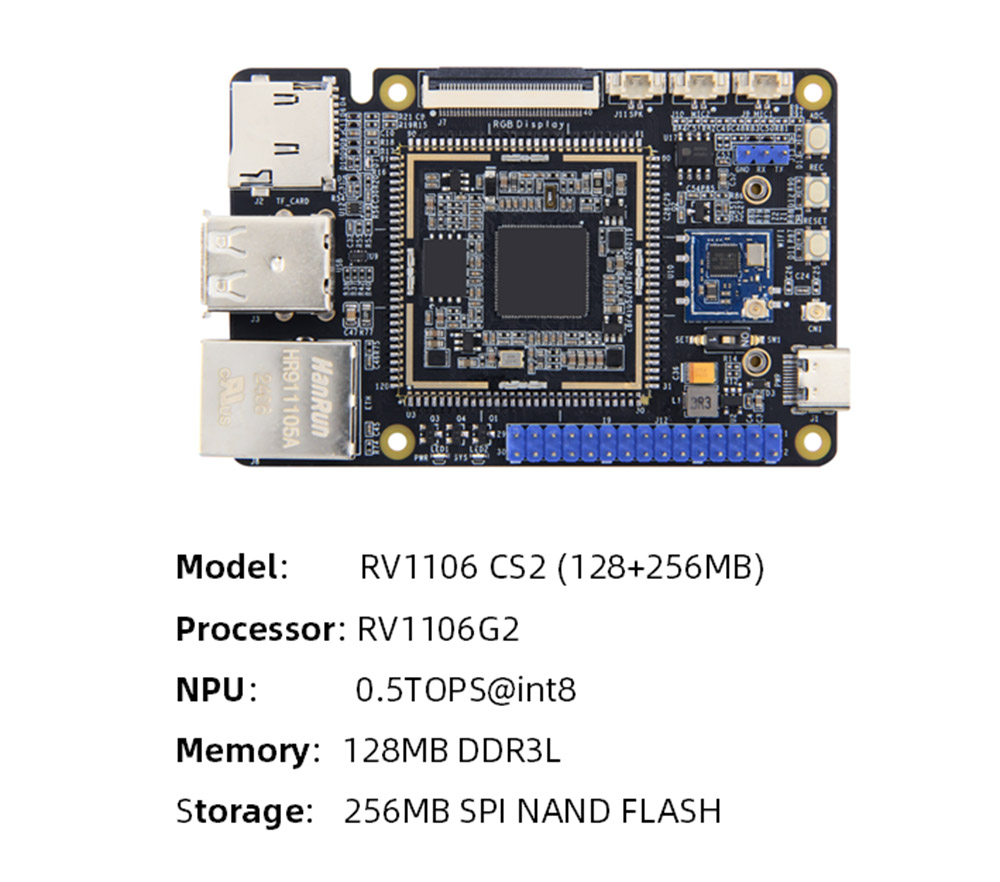

 Memory: Embedded DDR3L, optional RV1106G2: 128MB/RV1106G3: 256MB

 Storage: SPI-NAND FLASH, capacity: 256MB

 AI computing power: RV1106G2: 0.5TOPS@int8.RV1106G3: 1TOPS@int8

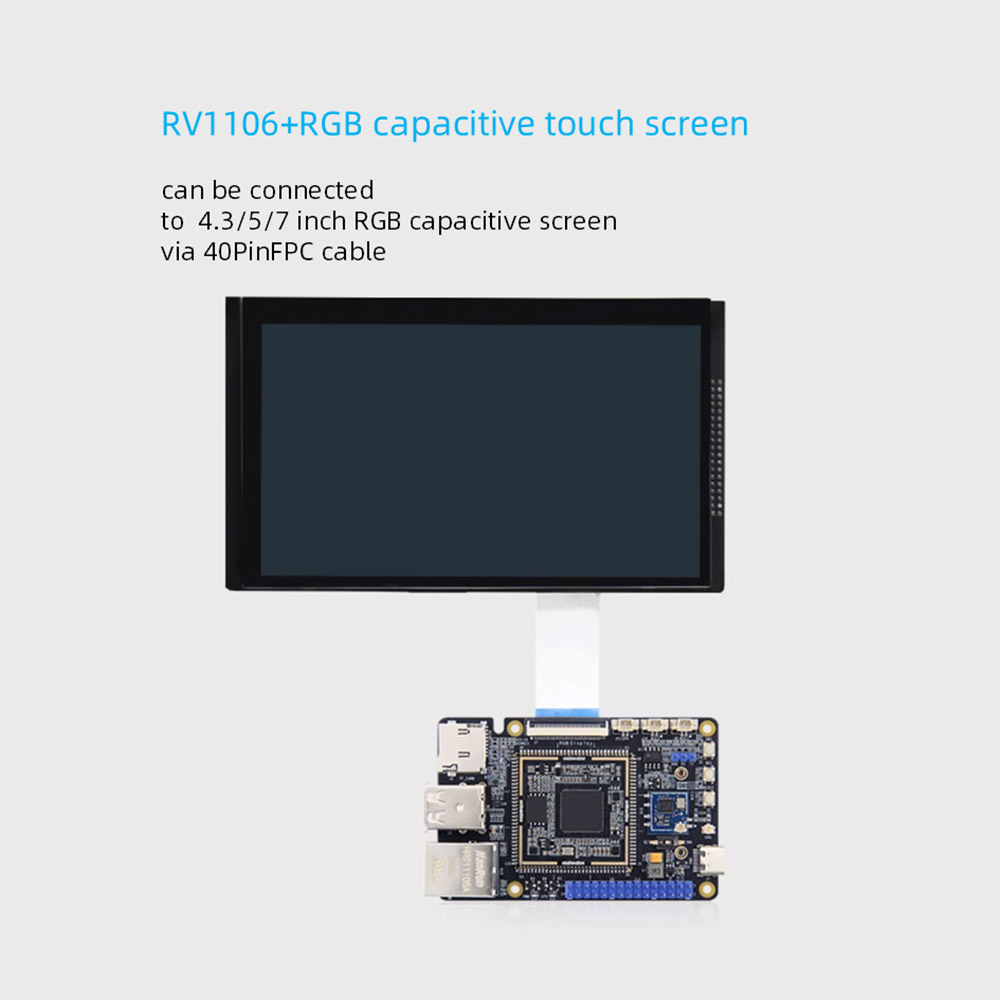

 Display: 40Pin FPC interface 0.5mm spacing, 18bit RGB interface timing, can be directly connected to our 4.3/5/7-inch RGB interface capacitive screen through FPC cable

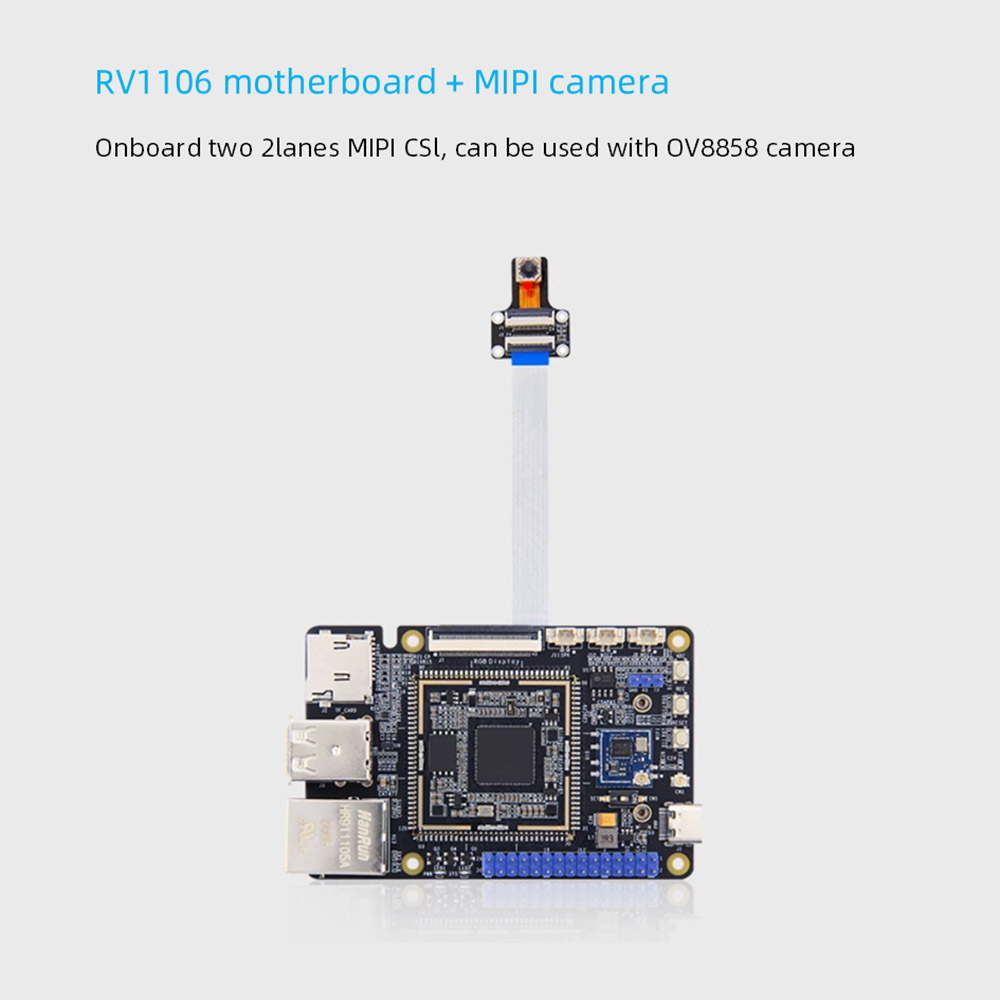

 Camera: Two 2lanes MIPICSI input, single channel supports up to 5M@30fps input, dual channel supports up to 1080P@30fps simultaneous input

 Power interface: 5V@1A DC input, Type-C interface, can also be used to burn images

 Ethernet: 100M Ethernet port*1, supports 10/100Mbps data transmission rate

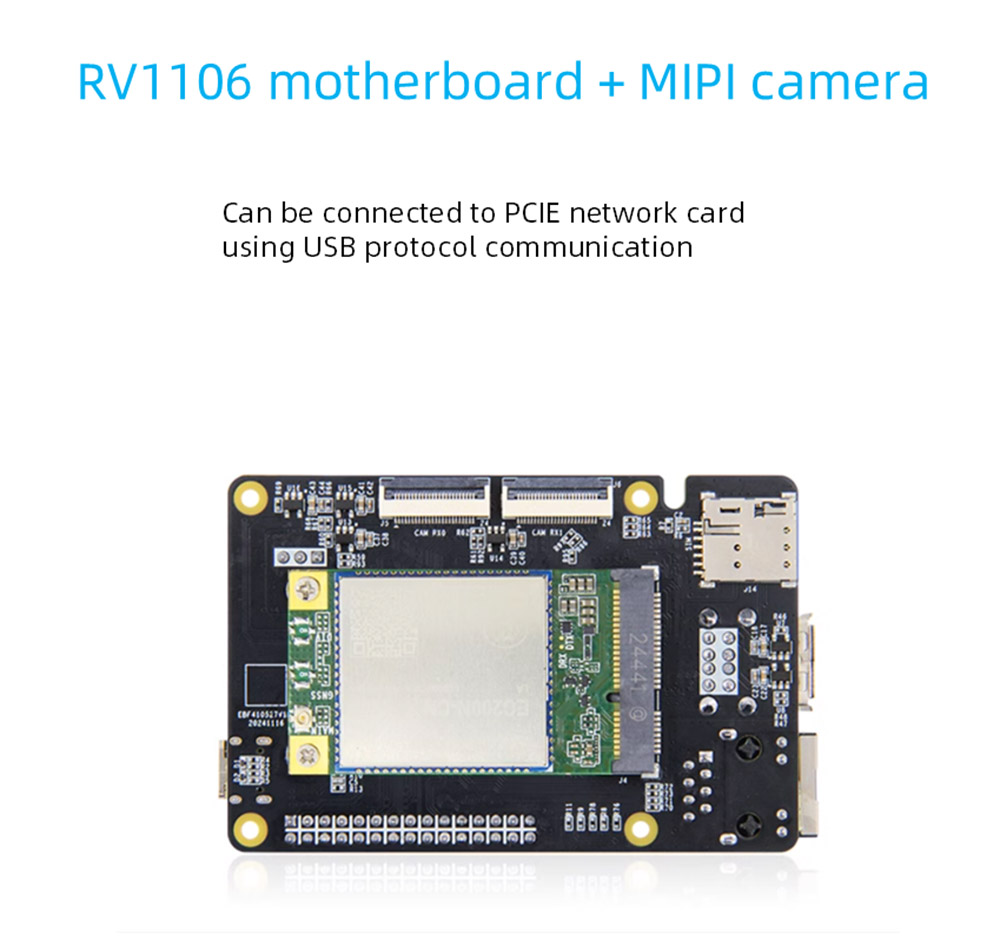

 PCle interface: Mini-PCle interface*1, can connect PCIE network card using USB protocol communication

 SIM card: SIM card holder*1, SIM card function needs to be used with 4G module

 TF card holder: SD2.0 interface, supports up to 512GB, supports TF card boot system

 USB2.0: USB HOST Type-A interface*2

 USB-OTG: Host when switched to Type-A, Device when switched to Type-C

 Selection switch

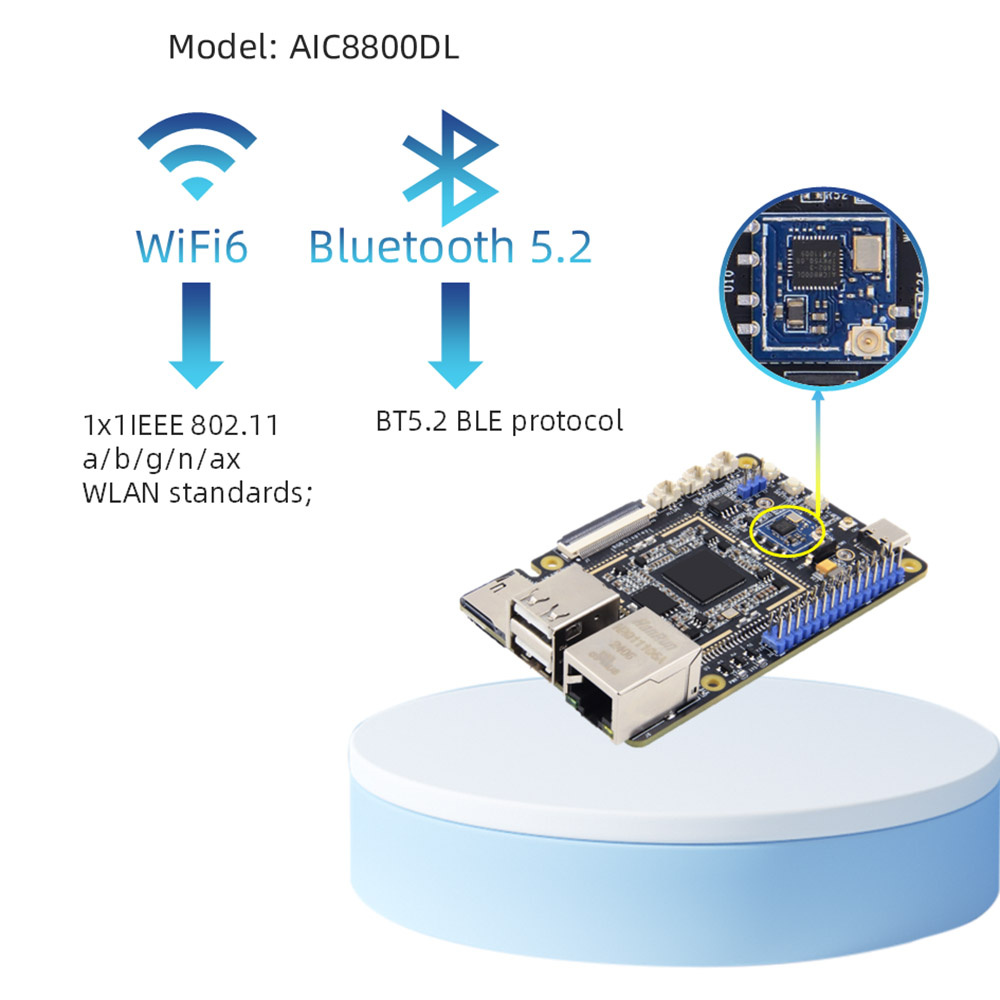

 WiFi+Bluetooth: Onboard support 2.4GWiFi6+BT5.2 BLE, model: AIC8800DL30

 IO interface: Pin2.54 pin interface, supports GPIO, SPI, I2C, UART, PWM function

 Debug serial port: default parameter 115200-8-N-1

 Audio: Microphone interface*2, dual-channel MIC input; speaker interface*1, single-channel SPK playback (left channel)

 Buttons: Reset button*1; Burn button*1; ADC button*1

 LED: Power indicator*1; System indicator*1

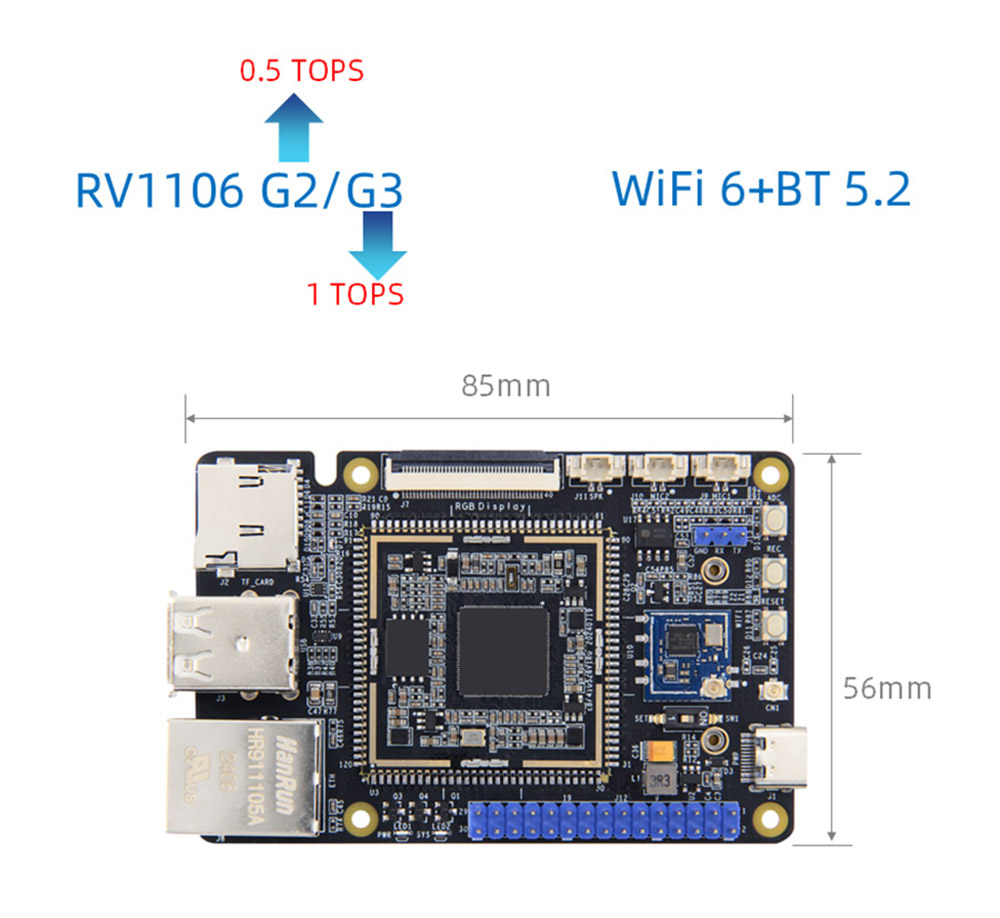

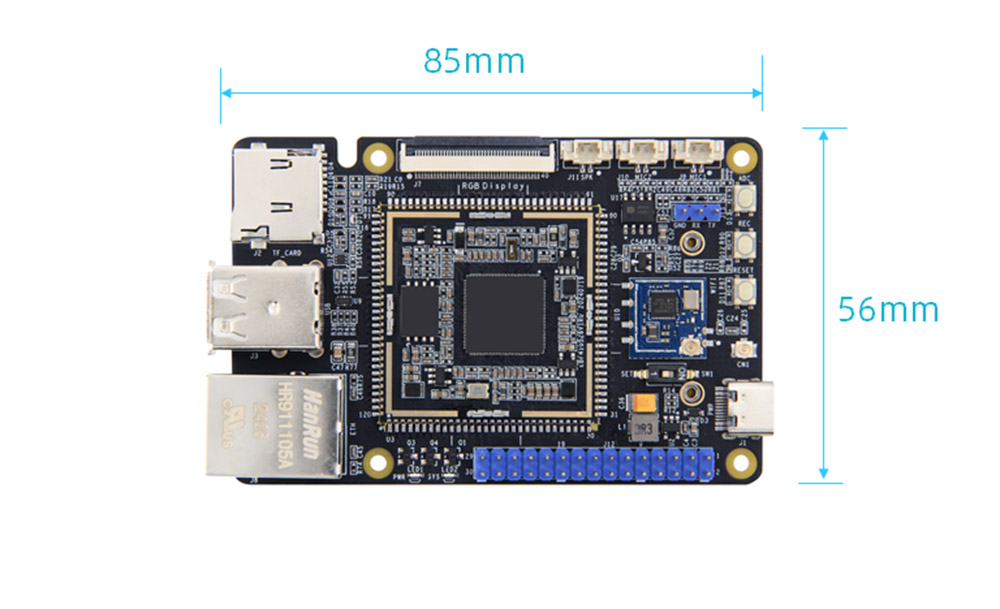

 Size: 56*85mm

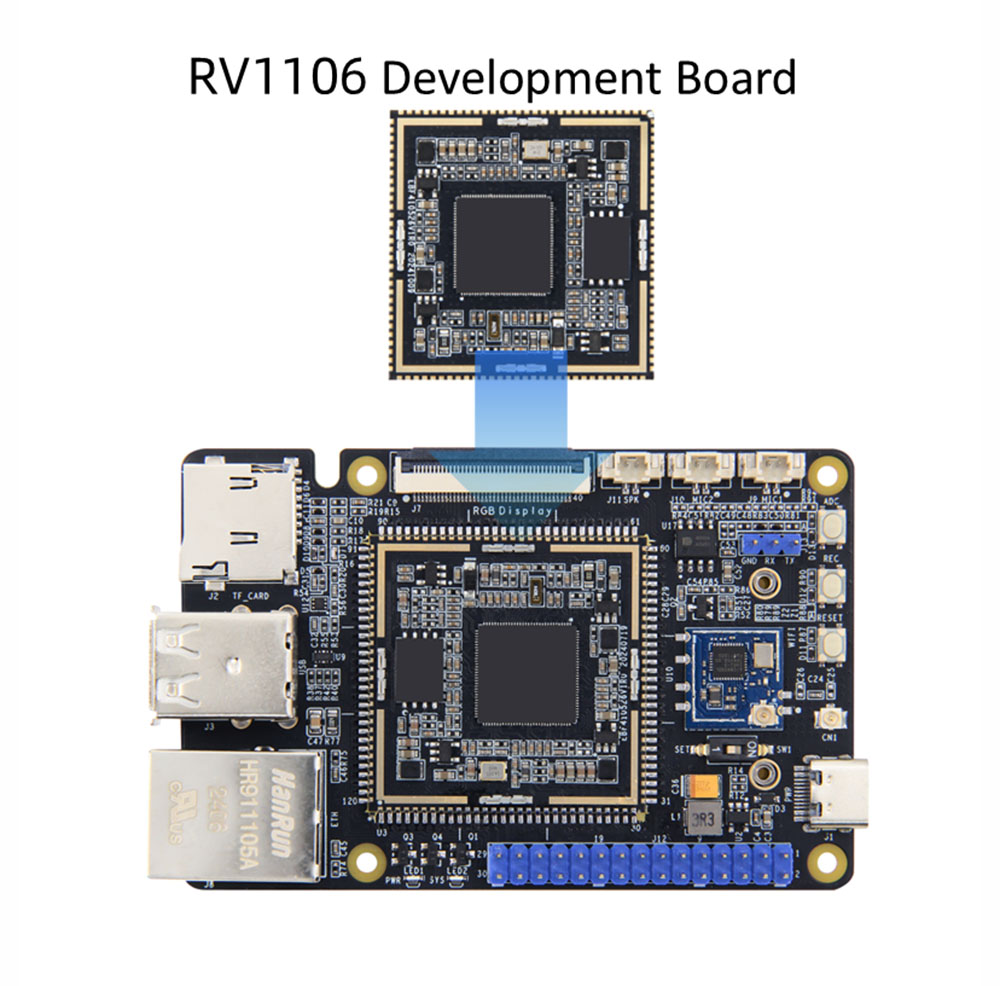

Matching Core Board is Available

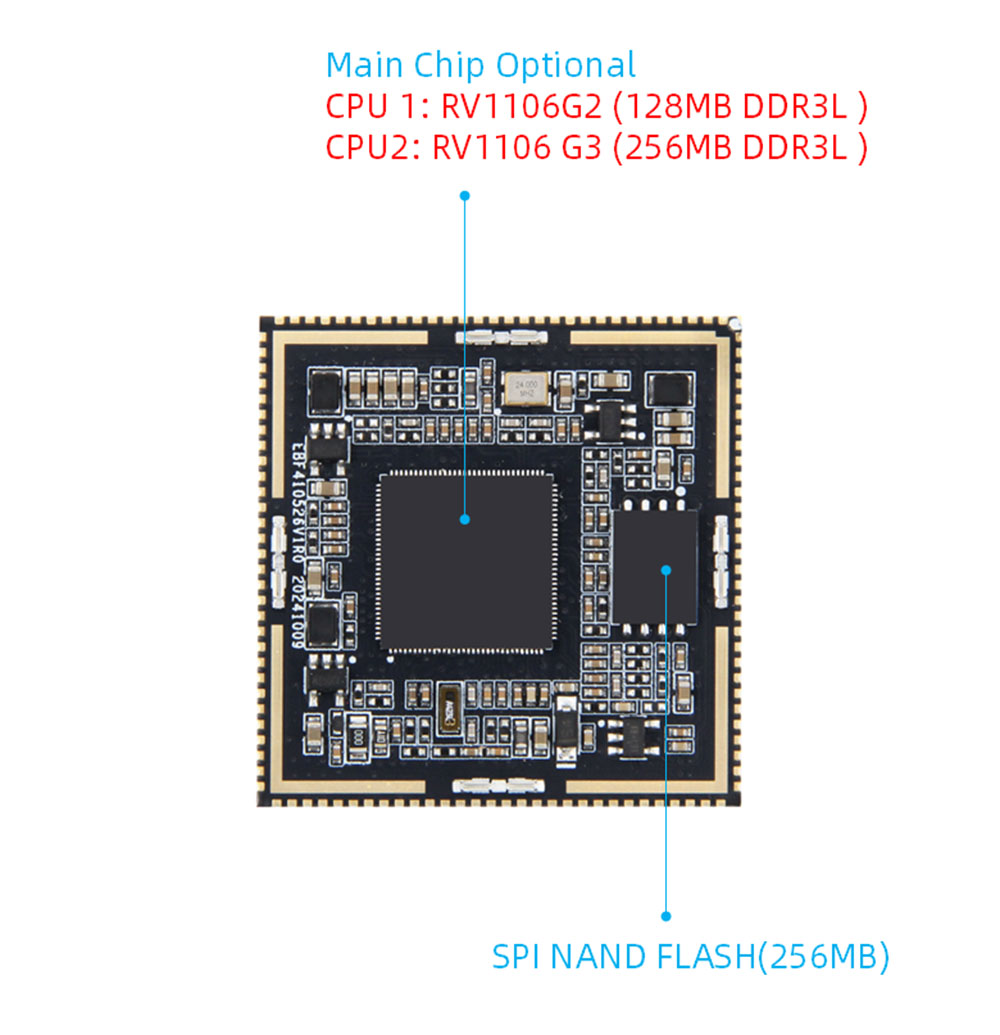

Core Board Hardware configuration

 CPU: Main chip: RV1106, CortexA7+MCU

 Memory: Embedded DDR3L, optional RV1106G2: 128MB/RV1106G3: 256MB

 Storage: 256MB SPINAND FLASH

 AI computing power: RV1106G2: 0.5TOPS@int8, RV1106G3: 1TOPS@int8

 Interface: Except SPINAND FLASH, 10 are fully led out, including 84 GPIOs including 1 NPOR reset pin and 3 USB dedicated pins

 PCB: 4 layers, immersion gold design

 Size: 35*35mm

Signal pins

 Network port: 1 100M Ethernet

 Serial port: 6

 I²C: 5

 SPI: 2

 ADC: 1

 PWM: 12

 I2S: 1

 USB: 1

 Camera: 2

 JTAG: 1

 LCD: 1

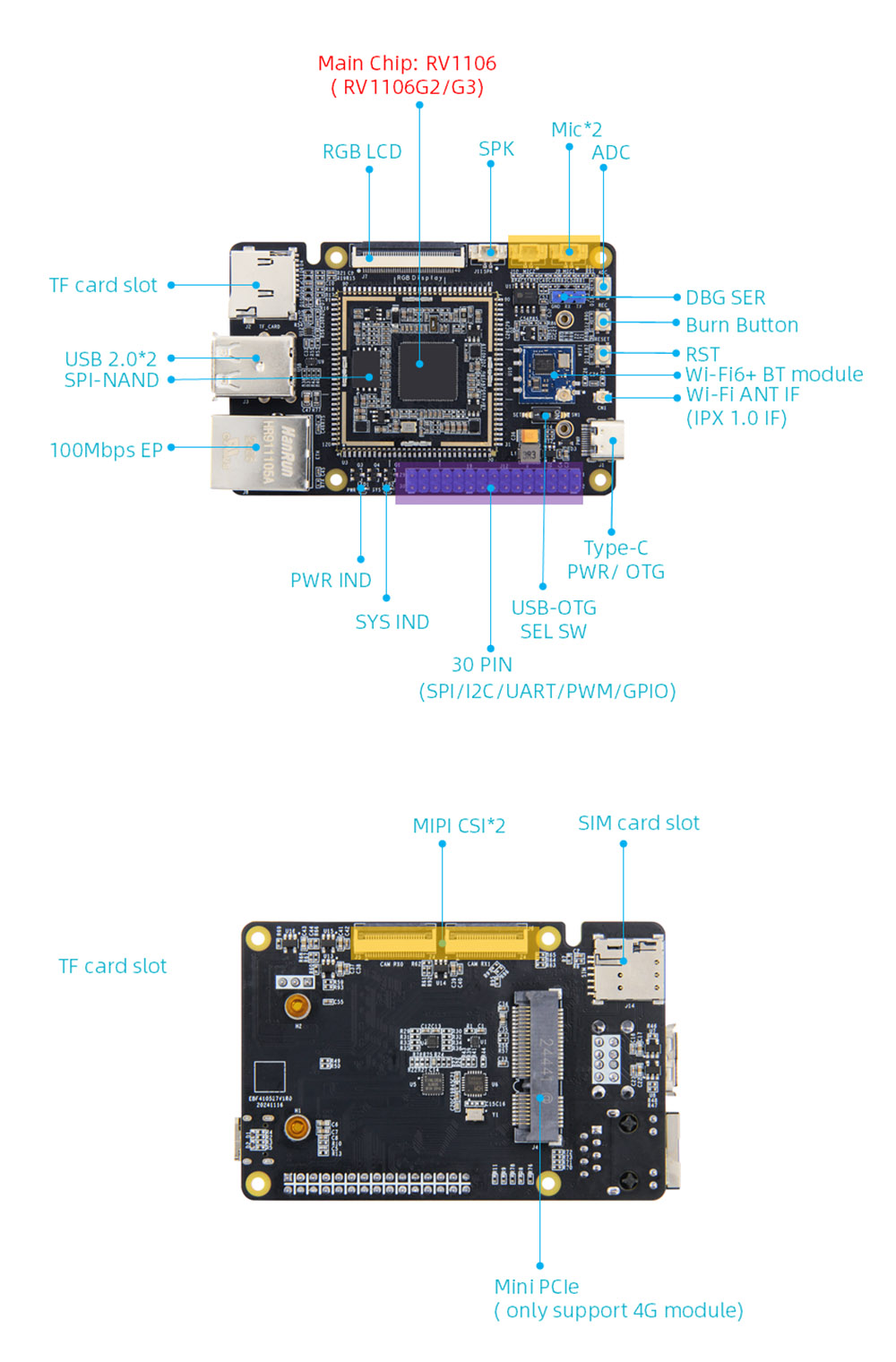

RV1106 Board Details
